8613

Sensibly equivalent to:
FX2507

Extras ▼



The 8613 is a hydrogen thyratron with an internal reservoir of gas. It was used for both Radar and industrial purposes.
The peak current that can be switched is 500 A giving a maximum pulse energy of 4 mW.
The serial number on the anode connection. The ceramic would have been pure white when new.

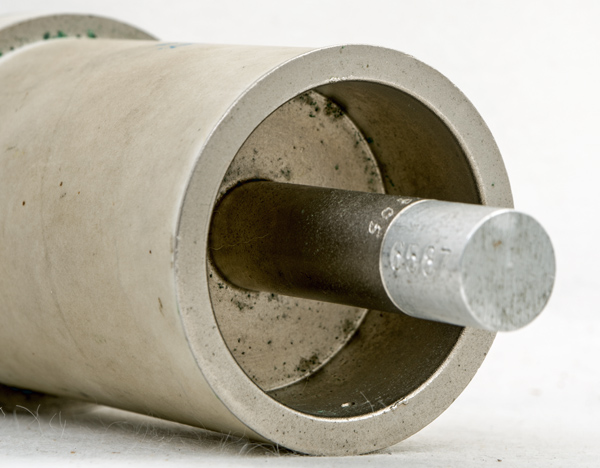

The recessed anode connection. The whole tube would need to be forced air cooled.
The four base pins set in ceramic. The locating pip indicates that the base was of the bayonet locking type.

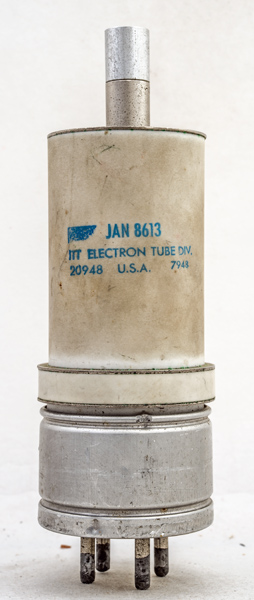

The wide ceramic tube envelope is 51 mm in diameter and, excluding the base pins, is 156 mm tall.
Reference: Data-sheet. Type 8613 was first introduced in 1969.



Pin Connections
1
2
3
4
tc
g1
k
h,k
k
a



Absolute Maximum Operating Conditions
General Notes
Vh
Ah
Va
mAa
6.3
6-11.5
16,00
500
Thanks to Frank Philipse for supplying the above PDF datasheet.
