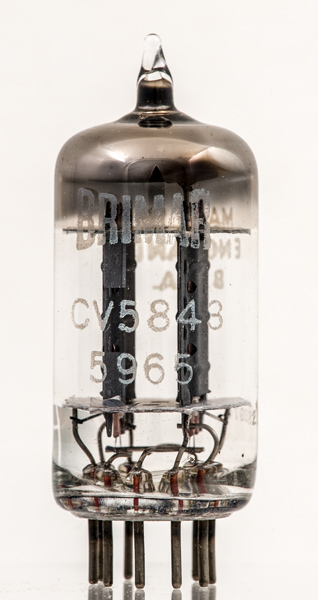

The 5965 (CV5843) is a special quality double triode designed for use in computer circuits. The 5965 will maintain its emission characteristics after long periods where the valve is biased to cut-off. This characteristic equates to use in a bi-stable or flip-flop circuit. The 5965 is not designed for audio use.
The heater is centre tapped for use at 6.3 or 12.6 Volts but in a parallel connection.

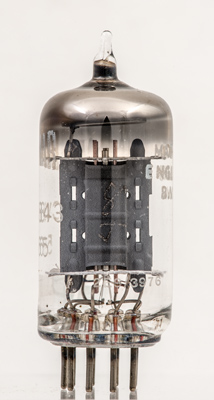

Face view of one triode. The grid has copper supports and the two piece anode is stitched together.

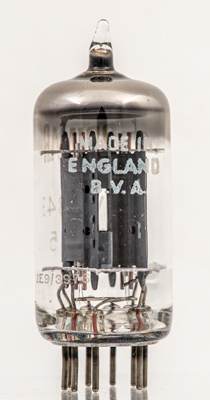

The BVA membership and Made in England.

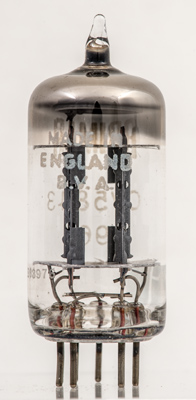

The control grid pitch can be seen through the holes in the ends of the anodes.
The thin glass tube envelope is 21 mm in diameter, and excluding the B9A base pins is 49 mm tall.
References: Data-sheet. Type 5965 was first introduced in 1954. See also1954 adverts.
