CV1170Sensibly equivalent¶ to:
|
|
|

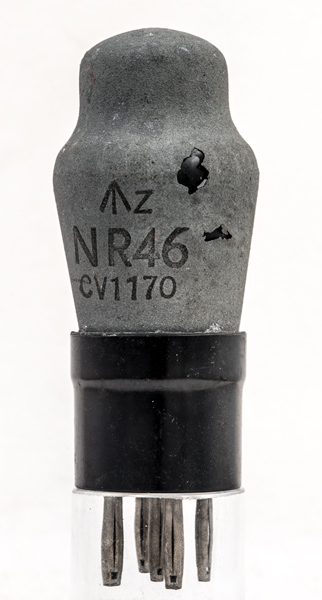

The CV1170 was the new name in 1941 for the NR46 pair of signal diodes.The diodes share a common cathode and the use was in superhet receivers for both signal detection and AGC rectification.The Z identifies the maker as MO Valve Company, Hammersmith.The classic envelope is 36 mm in diameter and, excluding the B5 base pins, is 79 mm tall.References: Data-sheet |
Pin Connections
| 1 | 2 | 3 | 4 | 5 |  a(d1) | a(d2) | h | h | k |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah |
| 4.0 | 0.3 |
|
Updated March 15, 2025.
|
|
