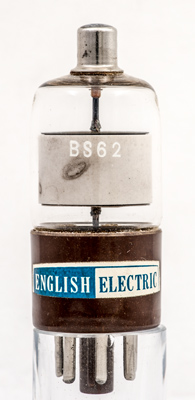

The CV402 is a protective spark gap. The commercial Type designation appears on the glass as BS62.

The construction has a ceramic ring with top and bottom caps through which the connections to the gap points pass.

The English Electric identification label.

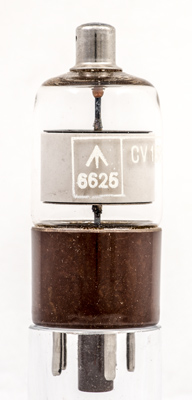

Up arrow and 6625.

The wide glass tube envelope is 30 mm in diameter and, excluding the IO base pins, is 68 mm tall.

Reference: Observation.

Pin Connections

Absolute Maximum Operating Conditions^¶
