CV592

Sensibly equivalent^¶ to:

6SJ7GT

Extras ▼

Unknown Donation from Jeremy Harmer

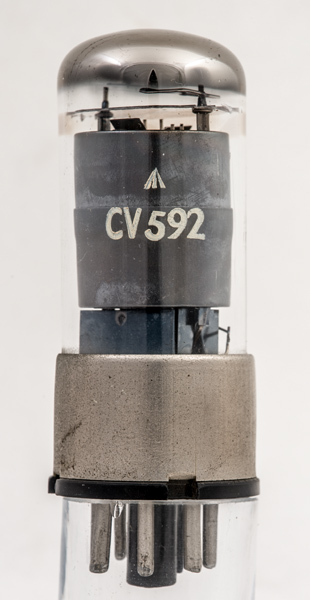

The CV592 (commercial 6SJ7GT) is a sharp cut-off pentode. The design use was as a high gain amplifier or as a biased detector.

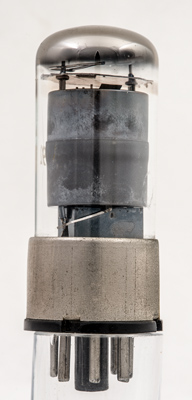

The screening hides the inner structure.

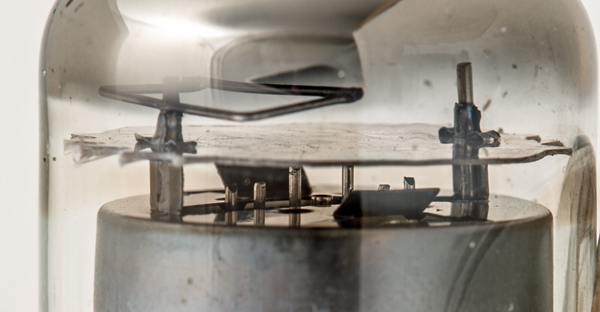

At the top the three grid supports and the round cathode can be seen.

The wide glass tube envelope is 28 mm in diameter and excluding the IO base pins, is 71 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³.

Pin Connections

IO	1	2	3	4	5	6	7	8
	m	h	g3	g1	k	g2	h	a

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.3	250	100	-3	3	0.8	1M	1.65

Thanks to Frank Philipse for supplying the above PDF datasheet.
