CV1655

Sensibly equivalent to:
3A/107B 4019B 425XP AR11 POVT75

Extras ▼

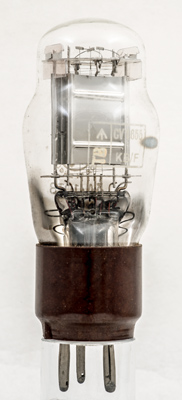

The CV1655 (commercially the 3A/107B) is a directly heated triode based on the 4019B. The old GPO code is POVT75 and the Army code was AR11.
The CV1655 was designed for use in telephone repeaters.

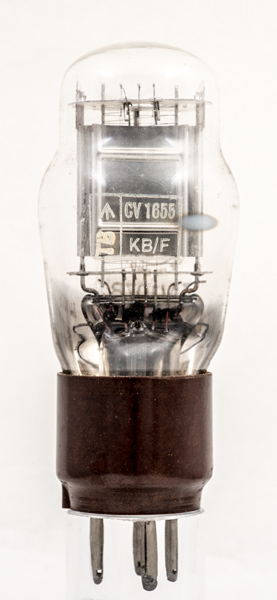

The box anode is left bright indicating a low power device.

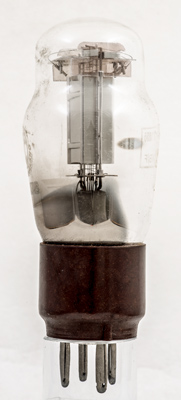

Side view.
The classic envelope is 44 mm in diameter, and excluding the B4 base pins is 101 mm tall.
Reference: Data-sheet.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
ra
gm
μ
4.0
0.25
190
5,500
1.27
7
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 19, 2025.
