TY2-125

Sensibly equivalent to:
CV1924
See also:
Mullard Valves for VHF Advert

Extras ▼



The TY2-125 is a power triode for use up to 200 MHz and it has an anode dissipation of 136 Watts when adequately cooled.
Two valves operated in Class B as an audio modulator could supply 700 Watts at 5% distortion.

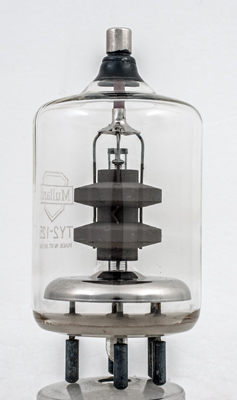

The distinctive anode with side lobes.

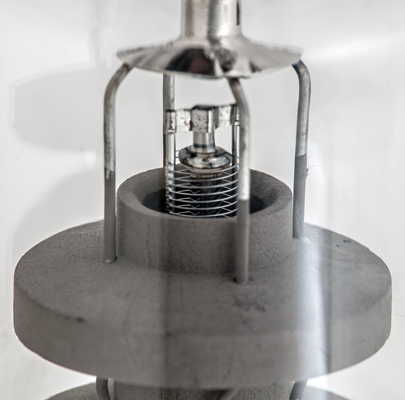

The top of the anode with the four fixing points to the top cap. The anode does not have a lower fixing. The grid is clearly seen but not the filament. The thoriated tungsten filament is held by stout rods top and bottom. The filament is a short section of helix located at the centre part of the anode.

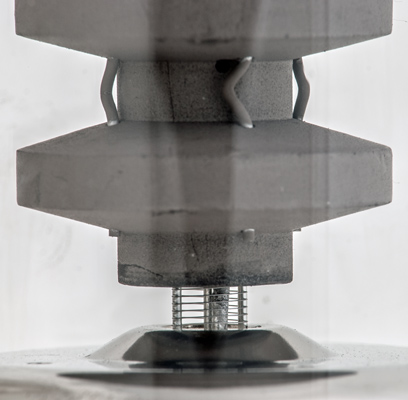

The base of the anode with the thick filament support seen within the grid. The lower disc is a screen.

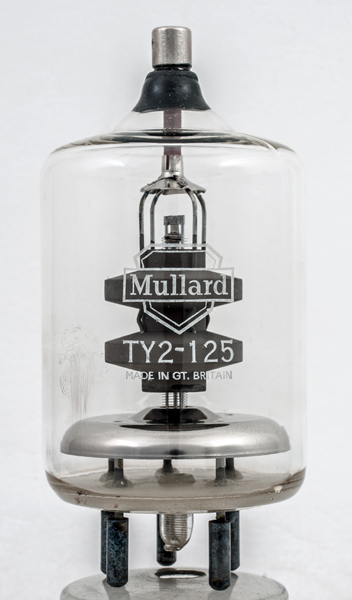

The wide glass tube envelope is 60 mm in diameter, and excluding the B5F base pins is 106 mm tall.
Reference: Datasheet.



Pin Connections
B5F
1
2
3
4
5
tc
f
g1
g1
g1
f
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
5.4
2,500
-150
175
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 06, 2019.
shape:wide.glass.tube construction:all.glass type:triode age:1950.1960 base:b5f heater:6.3v pins:7 pin:1.f pin:2.g1 pin:3.g1 pin:4.g1 pin:5.f pin:tc.a
