CV277

Sensibly equivalent^¶ to:

19G3

Extras ▼

Photographic Donation - Mark Mallison

The CV277 is a half wave vacuum rectifier based on the VX6010. The heater needs a warm-up time of 15 seconds minimum before HT is applied.

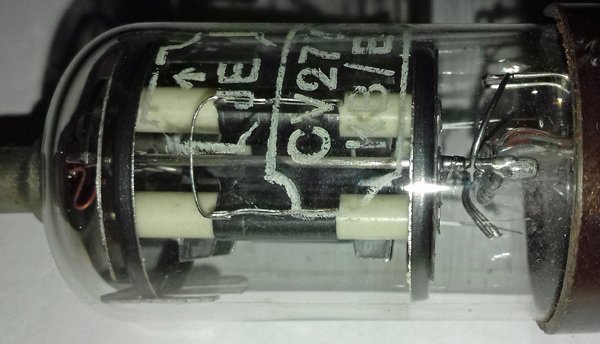

The high voltages involved require the use of ceramic insulators.

The anode is shaped for greater surface area and thus heat dissipation capability.

Thanks to Mark Mallison for sending the images.

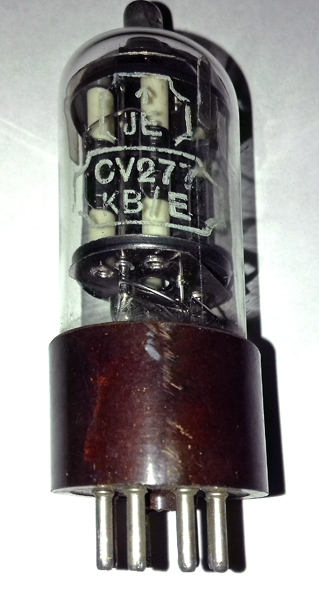

The wide glass tube envelope is 32 mm in diameter, and excluding the IO base pins is 82 mm tall.

Reference: Datasheet.

Pin Connections

IO	1	2	3	4	5	6	7	8	tc
	-	h,k	-	-	-	-	h	-	a

Absolute Maximum Operating Conditions^¶

Rectifier	Vh	Ah	Va
	4.0	1.4	2,400

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated October 12, 2019.
