1A5G

Sensibly equivalent^¶ to:

CV755

Extras ▼

Unknown Photographic Donation - Mark Mallison

The 1A5G is a dry cell audio output pentode with a maximum output of 0.1 Watts.

Electrically the Loctal 1LA4 is identical and a late 1940s re-design of this valve.

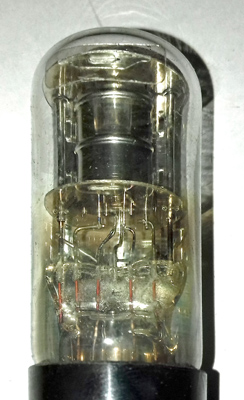

The anode is left bright and is cylindrical.

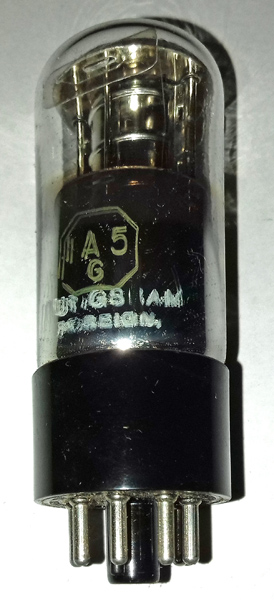

Thanks to Mark Mallison for sending the images.

The wide glass tube envelope is 30 mm in diameter, and excluding the IO base pins is 70 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type 1A5G was first introduced in 1940. See also 1940 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	nc	f+	a	g2	g1	nc	f-,g3	nc

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	rl	Pout	D
	1.4	0.05	90	90	-4.5	4.0	1.1	0.3M	0.85	25,000	115mW	7%

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated January 06, 2022.
