The GL5557 is an industrial thyratron with a direct equivalent of the PL17. More details are to be found on the attached data-sheet.

Uses include controller AC to DC rectification and AC motor speed control.

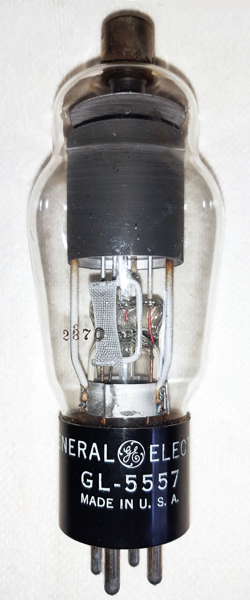

The base pins, GE logo and Made in USA.

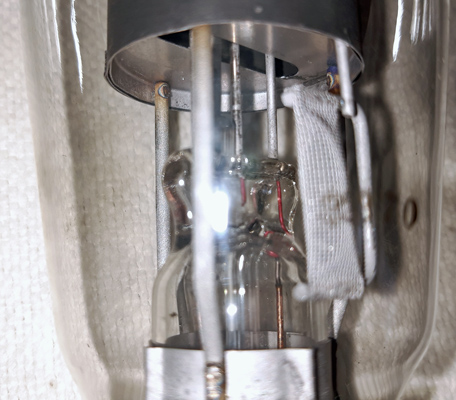

The anode is fixed to the pinch stem with a screw-on collar.

The gas reservoir to the side of the stem.

Thanks to Mark Mallison for sending the images.

The classic envelope is  mm in diameter and excluding the UX4 base pins, is  mm tall.

Reference: Data-sheet.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
