A36ASensibly equivalent¶ to:See also:
|
|
|
The A36A from Ever Ready was made under contract by Mullard and is a renamed TH4 triode hexode mixer dating to 1936.In the 1930s the UK still had a mix of AC and DC mains supplies and so called 'universal' sets were made with series heater chains and the HT taken from the mains via a rectifier - redundant on the DC mains of course. Mullard made the TH21C which was the TH4 with a 200 mA heater for these sets. If the mains plug was wired incorrectly the chassis would be live and thus potentially lethal.![](../pics/acn0080a.jpg)

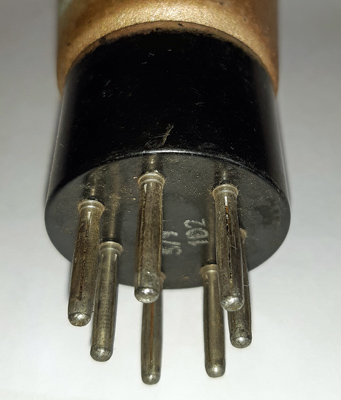

The B7 base cap.Thanks to Mark Mallison for sending the images.The classic envelope is 45 mm in diameter, and excluding the B7 base pins is 115 mm tall.References: Data-sheet & 1043. Type A36A was first introduced in 1936. See also 1936 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | tc | ![](../static/key.gif) a(t) | g1(t),g3 | g2,g4 | h | h | m,k | a | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 4.0 | 1.5 | 250 | 70 | -2 | 4.0 | 6.0 | 1.5M | 1.0 |
|
Absolute Maximum Operating Conditions¶
| Va | mAa | gm | ![](../static/key.gif)
| 150 | 6.0 | 1.2 |
|
Thanks to Andy Cowley for supplying the above PDF datasheet. |
