L22/DDSensibly equivalent¶ to:CV3533
|
|
|

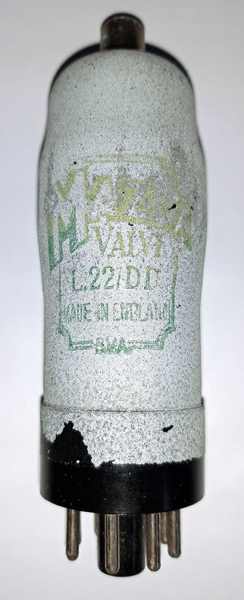

The Mazda L22/DD is a battery double diode triode designed for broadcast radio reception.![](../pics/acn0100a.jpg)

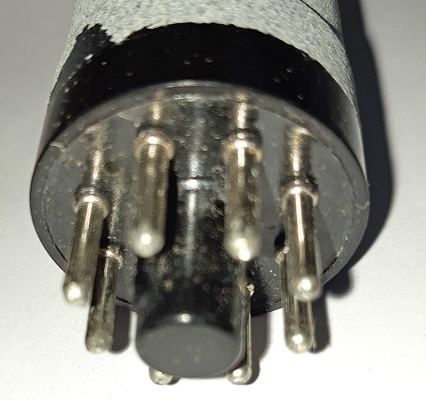

The MO base pins.Thanks to Mark Mallison for sending the images.The classic envelope is mm in diameter and, excluding the MO base pins, is mm tall.References: Data-sheet & Data. Type L22/DD was first introduced in 1939. See also 1939 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | tc | ![](../static/key.gif) f(-) | nc | a | nc | a(d2) | m | a(d1) | f(+) | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm | μ | ![](../static/pdflogo.gif)
| 2.0 | 0.1 | 150 | -3.0 | 4.0 | 10,000 | 1.85 | 18.5 |
|
