6AQ6Sensibly equivalent¶ to:CV2937
|
|
|

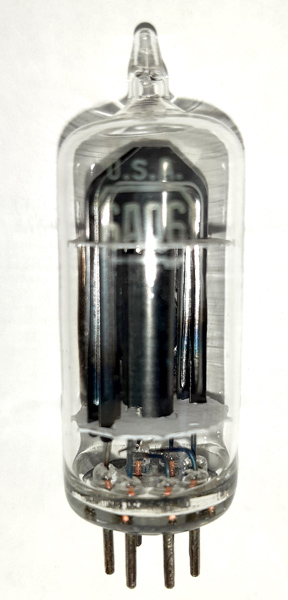

The 6AQ6 double diode and high μ triode was designed for broadcast radio use as detector, AGC and first audio amplifier.The pin connections and characteristics match the 6AT6 with the exception of heater current. The 6AT6 has a 6.3 V 0.3 A heater whereas the 6AQ6 has a 0.15 A heater consumption.Thanks to Mark Mallison for sending the images.The thin glass tube envelope is mm in diameter and, excluding the B7G base pins, is mm tall.Reference: Data-sheet. Type 6AQ6 was first introduced in 1948. See also 1948 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) g1 | k | h | h | a(d2) | a(d1) | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm | μ | ![](../static/pdflogo.gif)
| 6.3 | 0.15 | 250 | -3.0 | 1.0 | 58,000 | 1.2 | 70 |
|
