SE1444

Sensibly equivalent to:
VT-A

Extras ▼

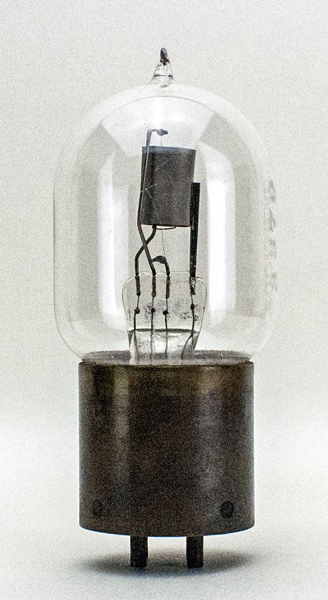

The SE1444 is identical to the Moorhead VT-A. Most had obvious gettering but some, like this exhibit, have clear envelopes.
This type of valve was used for the first Trans-Atlantic flight by the US Navy.

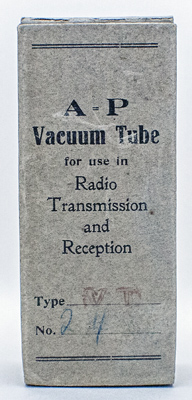

The box for this exhibit. The box measures about 50 mm square and 128 mm in length.
Thanks to Joe Gruber for sending the images.
The balloon envelope is 44 mm in diameter and, excluding the UV base pins, is 104 mm tall.
Reference: Joe Gruber. Type SE1444 was first introduced in 1917.



Pin Connections
UV
1
2
3
4
g1
f
f
a



Updated August 04, 2020.
shape:balloon construction:pinch type:triode age:pre.1920 base:uv pins:4 pin:1.g1 pin:2.f pin:3.f pin:4.a
