R Type

Sensibly equivalent to:
R. TM

Extras ▼

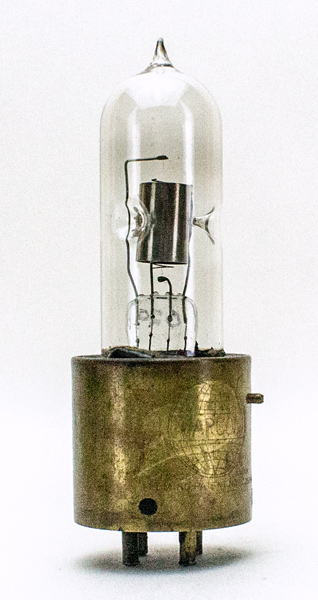

This exhibit looks to be a Morehead R Type but fixed onto a Moorhead-Marconi-DeForest base cap. In the Moorhead adverts of the time the R was sold as un-based.
Note the indentations on the envelope that hold the anode rigidly in place.
Thanks to Joe Gruber for sending the images.
The thin glass tube envelope is 22 mm in diameter and, excluding the UV base pins, is 92 mm tall.
Reference: Joe Gruber. Type R Type was first introduced in 1916.



Pin Connections
UV
1
2
3
4
g1
f
f
a



Updated August 04, 2020.
shape:thin.glass.tube construction:pinch type:triode age:pre.1920 base:uv pins:4 pin:1.g1 pin:2.f pin:3.f pin:4.a
