The Schickerling PS-15 and box were purchased from a radio shop in New York City on Cortland Street. The suggestion was that it was either faulty or a faulty design as this exhibit was found in a filing cabinet of a legal firm. The P-700 was also found at the same law firm.The filament rating indicates a thoriated tungsten filament.

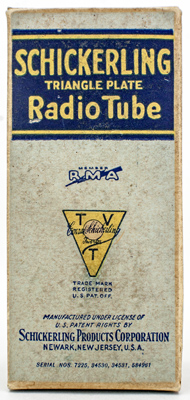

The original box. This was found in a filing cabinet of the New York City law firm of Pennie, Davis, Marvin and Edmunds. Their address being 165 Broadway. Thanks to Joe Gruber for sending the images.The envelope is mm in diameter and, excluding the UV base pins, is mm tall.Reference: Joe Gruber. |
Pin Connections
| 1 | 2 | 3 | 4 |  g1 | f | f | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah |
| 5.0 | 0.25 |
|
Updated February 12, 2021.
|
|
