R.4


See also:
The R4, R4A, R4B and R4C - Osram R4 Box

Extras ▼



The R.4 was a hard vacuum valve developed from the R Type to meet a specific need for a heterodyne receiver. See the article above for full details. See also R2 and R5.

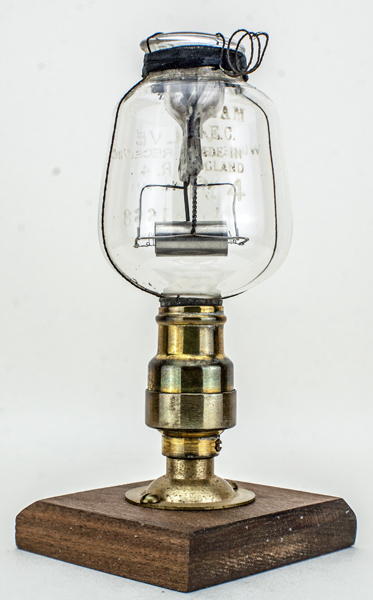

The lettering on the envelope reads: Valve wireless receiving. The other side reads: Osram GEC Made in England. R.4. The lettering reads top to bottom when the envelope is screwed into the screw holder. The R Type standard of the pinch above the base became dominant.
Thanks to Joe Gruber for sending the images.
The balloon envelope is 50 mm in diameter, and including the candelabra cap is 86 mm tall.
References: 1003 & 1004. Type R.4 was first introduced in 1917.



Updated July 16, 2021.
