DL96Sensibly equivalent¶ to:1P1 3C4 N25
|
|
|

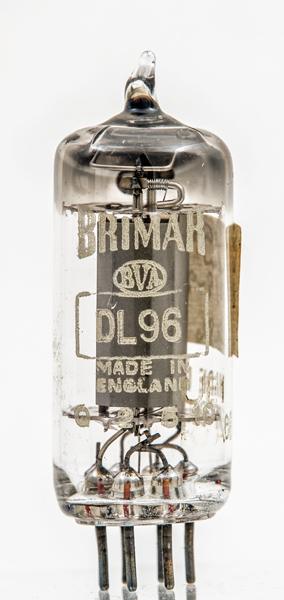

The DL96 is a low consumption audio output valve and dates from the 1950s. The audio output is low at 200 mW but considering the low filament power it is quite remarkable. This is a British made valve and so probably dates from the 1950's.The top of the envelope is closed off in a flatter style than the exhibit seen here.![](../pics/act0044a.jpg)
The paper label shows when this was last tested.The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.References: Data-sheet, 3002 & 1040. Type DL96 was first introduced in 1953. See also 1953 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) f- | a | g2 | nc | fct | g1 | f+ |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | Pout | D | ![](../static/pdflogo.gif)
| 1.4 | 0.05 | 85 | 85 | -5.2 | 5 | 0.9 | 150,000 | 1.4 | 0.2 | 10% |
|
