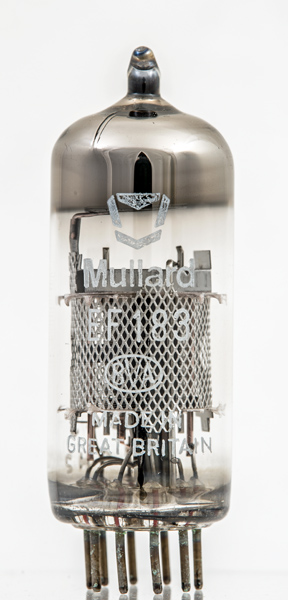

The EF183 is a high gain variable μ RF amplifier pentode. It is a late 1950s design and superseded the EF85. The EF184 was the straight version of the design and replaced the EF80. All four valves have the same pin connections.In 1959 Mullard describe the EF183 as: a frame-grid variable-mu RF pentode for use as an automatic gain controlled IF amplifier in television receivers. The heater is suitable for series or parallel operation by AC or DC.The valve performance figures are given at 40 MHz and the normal TV IF frequency was around 33 MHz.This exhibit features the stylised logo introduced in 1970.

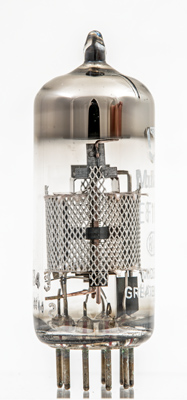

This is a true pentode and within the perforated screen can be seen the strap with the anode plates either side, the suppressor grid and the screen grid. The wires of the frame grid can not be seen.

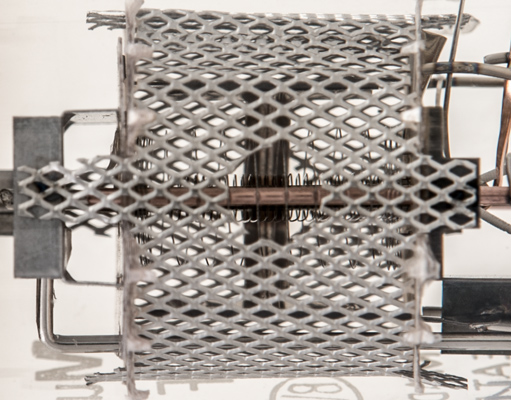

Here the suppressor grid can be seen as helical whereas the screen grid passes flat across the cathode.The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 53 mm tall.References: Data-sheet & 1040. Type EF183 was first introduced in 1959. See also 1959 adverts. |
