The CV2134 is the UK government procurement code for the commercial 90CV caesium photo voltaic cell. It is sensitive to red and infra-red light.

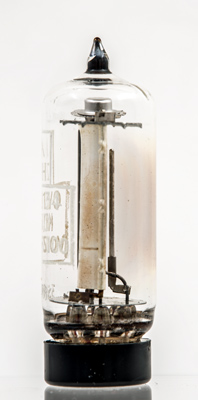

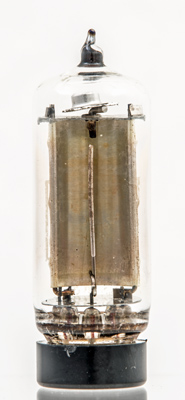

The curved photo-cathode and rod anode.

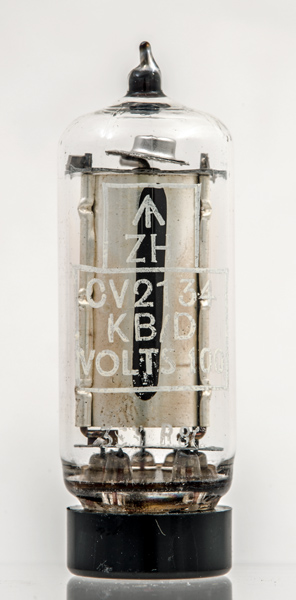

Face view.

The side window envelope is 18 mm in diameter, and excluding the B7G base pins is 46 mm tall.

Reference: Data-sheet.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
