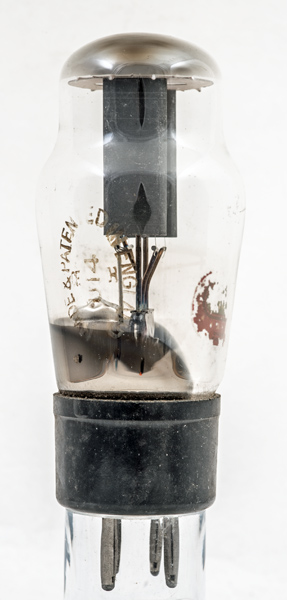

Initially the U14 and the U12 were the same valve intended to meet all HT requirements up to a maximum of 120 mA at 500 V, using a capacitor-input filter. However, some valves performed better than others on final factory test so the best ones were graded and marked U14 whilst the also-rans were marked U12.This U14 was designed to work with a maximum reservoir capacitor of 32 µF and to have an effective series resistance of 100 Ω.![](../pics/adc0043a.jpg)
The M-OV identification ellipse with the Type designation along the long axis.![](../pics/adc0043e.jpg)

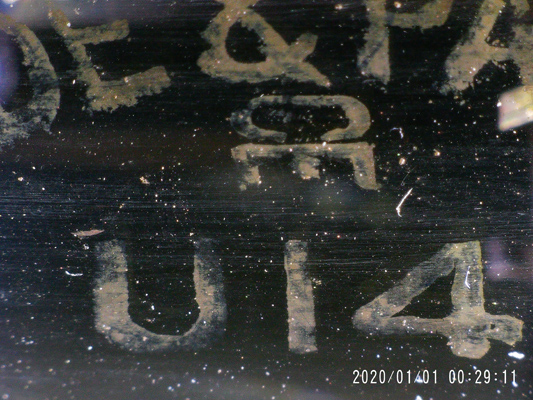

Microscope image of the lettering.![](../pics/adc0043b.jpg)

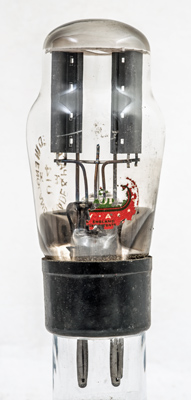

The remains of the Marconi Brand label.![](../pics/adc0043c.jpg)

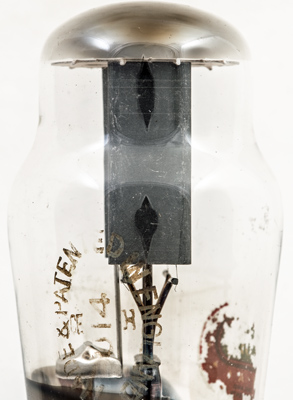

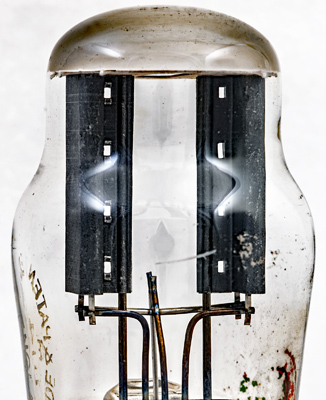

The twin sections with stitched blackened anodes. The filaments are connected in series.![](../pics/adc0043d.jpg)
Face view showing how thin the filament ribbon is.![](../pics/adc0043f.jpg)

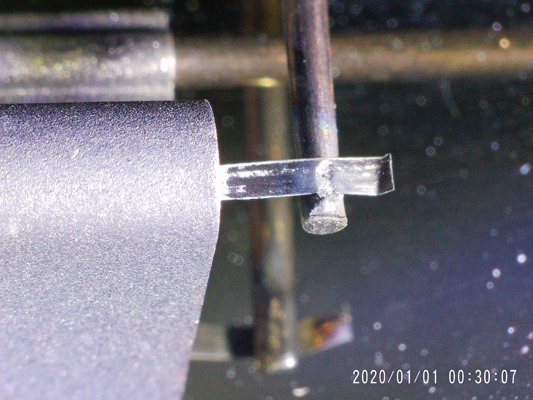

Under the microscope the filament tape weld to the support is clear.The balloon envelope is 45 mm in diameter and, excluding the B4 base pins, is 99 mm tall.References: Data-sheet & private communication. Type U14 was first introduced in 1931. See also 1931 adverts. |
