N14

Sensibly equivalent^¶ to:

1C5G CV1803 DL35

Extras ▼

Osram The Signals Museum - RAF Henlow. Other N14 exhibits

The Osram N14 is an octal based audio output beam tetrode for use with dry batteries it is identical to the 1C5G.

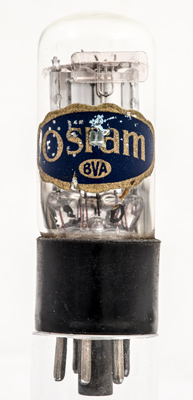

The Osram brand label.

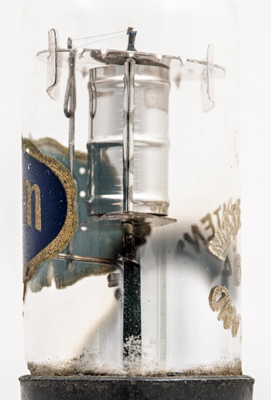

The filament tension springs at the top are raised more than expected. This is due to a broken filament.

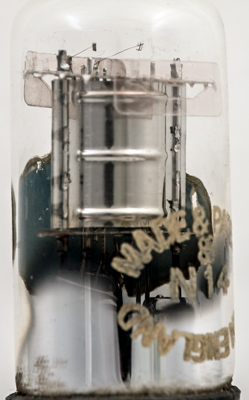

The oxide coated filament can be seen at the top as thin white curled strands.

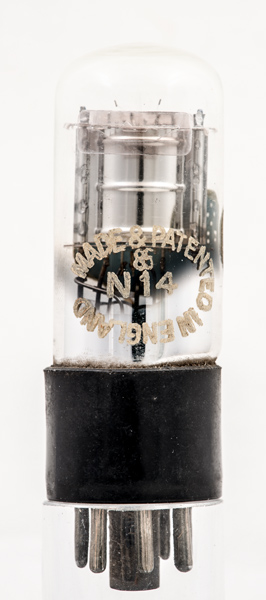

The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 76 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³. Type N14 was first introduced in 1940. See also 1940 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	nc	f+	a	g2	g1	nc	f-	nc

Absolute Maximum Operating Conditions^¶

Beam Tetrode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	Pout	D
	1.4	0.1	110	110	-7.5	7.8	3.5	110k	1.55	0.24W	10%

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated September 04, 2024.
