The VT-131 (commercially the 12SK7) is a variable μ pentode for RF and IF amplifiers in superhet receivers. The gain of the device being controlled by a negative voltage derived from rectifying the final IF signal. In this way strong signals do not overload the receive chain because the various controlled stages have their gain reduced.
The 12.6 Volt heater was introduced so that the heater could be run directly from a vehicle battery. It would have been common to find these valves in professional mobile equipment. For fixed station use the 6SK7 was an identical device in all other respects.

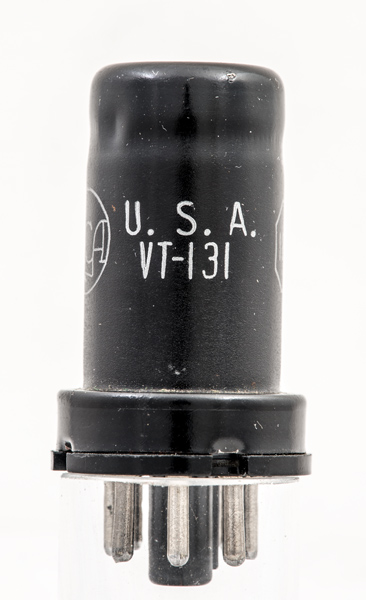

The 12SK7 Type designation is also present.

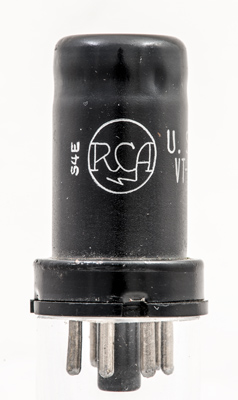

The RCA Logo.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 51 mm tall.
References: Data-sheet, 4055, 3002 & 1040. Type VT-131 was first introduced in 1939. See also1939 adverts.
