VT-116

Sensibly equivalent to:
6SJ7
See also:
Metal Striptease

Extras ▼



The USA service code VT-116 is a high gain screened pentode, commercially the 6SJ7 and dates from the late 1930s. It is a sharp cut-off type and is specified for RF or AF use.
The 'S' in the commercial Type designation indicates a version that is single ended - i.e. no top cap. The 6J7 has the top cap and slightly different characteristics.

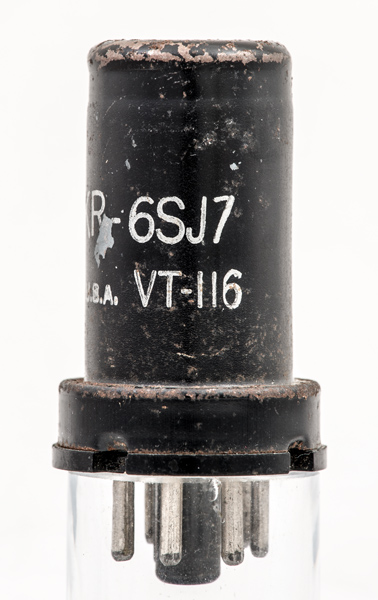

The Ken-Rad maker's name.
The thin metal tube envelope is 25 mm in diameter and excluding the IO base pins, is 50 mm tall.
References: Data-sheet, 1040 & 1043. Type VT-116 was first introduced in 1938. See also 1938 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
g3
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
3
0.8
1M
1.65
Thanks to Frank Philipse for supplying the above PDF datasheet.
