CV1116Sensibly equivalent¶ to:
|
|
|

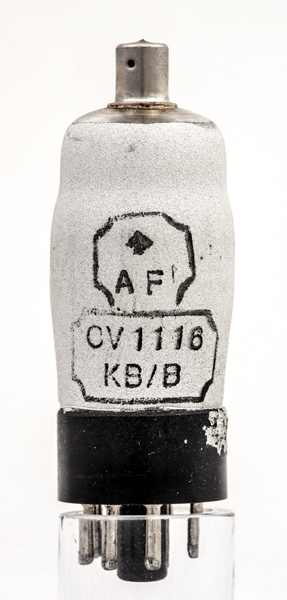

The CV1116 is an HF pentode. The prototype was the V872 and the commercial equivalent is the 6F32M (the suffix M is to distinguish the MO valve from the later B7G valve).The KB/B identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the B identifies the maker as Edison Swan, Baldock, pre Sept 1945.

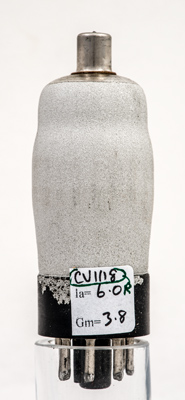

The last test results.The classic envelope is 32 mm in diameter and, excluding the MO base pins, is 79 mm tall.Reference: Data-sheet. Type CV1116 was first introduced in 1948. See also 1948 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | tc |  h | k | a | g2 | g3 | m | nc | h | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | gm |
| 6.3 | 0.63 | 200 | 200 | -4.5 | 5.1 | 3.45 | 4.0 |
|
