25L6GT

Sensibly equivalent to:
CV553 KT32

Extras ▼



The 25L6GT is designed for use in single ended audio stages in apparatus using a 300 mA series heater chain. As a single ended audio amplifier it can produce 4.3 Watts.

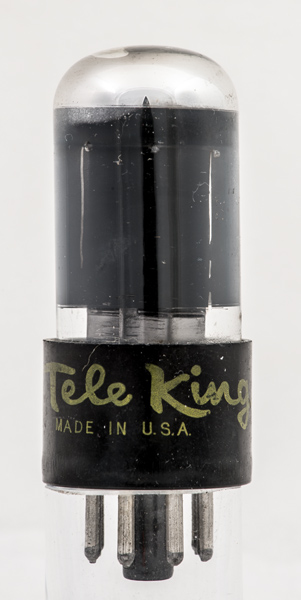

Tele King made television receivers in the USA. Clearly they bought-in valves branded for them.

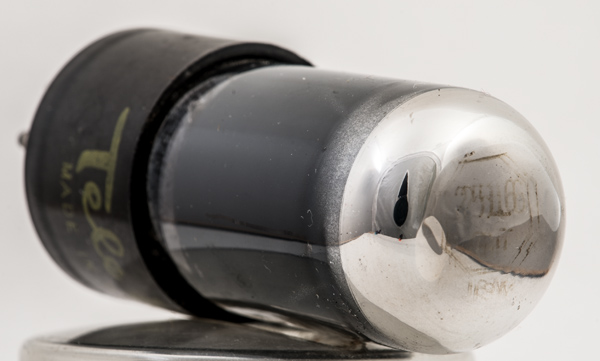

The dome carries the identification and the maker was probably RCA.

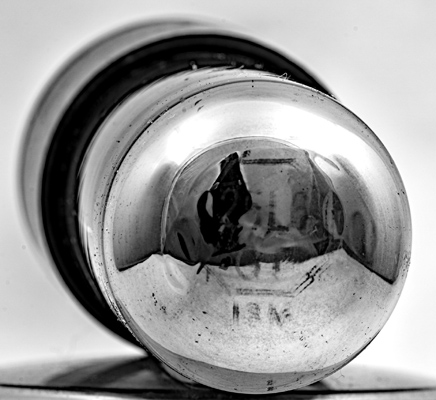

An enhanced image of the dome showing the 25LS GT a little more clearly. The lettering is within an octagonal border.
The wide glass envelope is 29 mm in diameter and, excluding the IO base pins, is 68 mm tall.
References: Data-sheet, 1040 & 1043. Type 25L6GT was first introduced in 1937. See also 1937 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
25
0.3
200
110
-8
50
2
30,000
9.5
4.3W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
