6AG7

Sensibly equivalent^¶ to:

CV1882 VT-247

See also:

Metal Striptease - CV366 short entry

Extras ▼

Westinghouse G8LSD Valve Collection Other 6AG7 exhibits

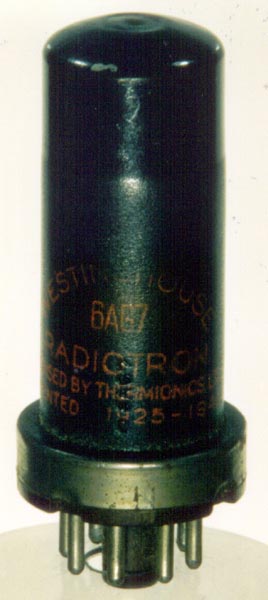

The 6AG7 is an American metal valve designed for single ended audio output stages. Probably for receiver use.

The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 66 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³. Type 6AG7 was first introduced in 1939. See also 1939 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	g3	h	m	g1	k	g2	h	a

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	Pout	D
	6.3	0.65	300	150	-3	30	7	130K	11	3W	7%

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated April 05, 2015.
