VT-247

Sensibly equivalent to:
6AG7 CV1882
See also:
Metal Striptease - CV366 short entry

Extras ▼

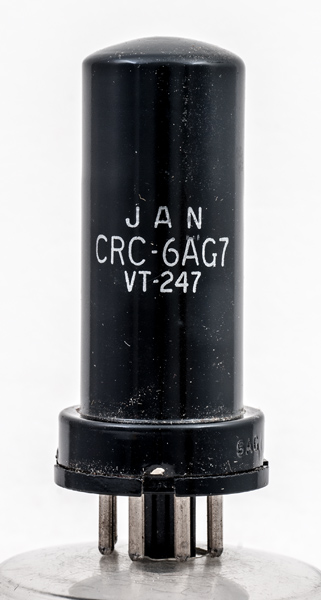

The VT-247 was designed for single ended audio output stages. Most likely use being for radio receivers. The commercial type is 6AG7 and this is also printed on the can. The American procurement process was mainly to issue specifications that matched a commercial product.

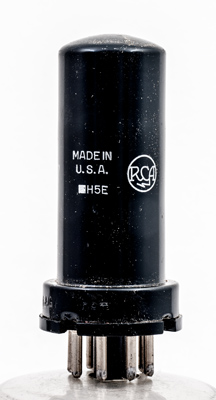

The RCA logo and Made in USA.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 67 mm tall.
References: Datasheet, 3002, 1043 & 1040. Type VT-247 was first introduced in 1939.



Pin Connections
IO
1
2
3
4
5
6
7
8
g3
h
m
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.65
300
150
-3
30
7
130K
11
3W
7%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 05, 2019.
shape:thin.metal.tube construction:glass.disc type:pentode age:1930.1940 base:io heater:6.3v pins:8 pin:1.g3 pin:2.h pin:3.m pin:4.g1 pin:5.k pin:6.g2 pin:7.h pin:8.a
