MH4K

Sensibly equivalent to:
41MTL AC/HL AR17 CV399 CV1037 D4 HL4 MH4 NR31 VR37
See also:
Catkin Valves - The Metal Valve - Osram Catkin Advert

Extras ▼

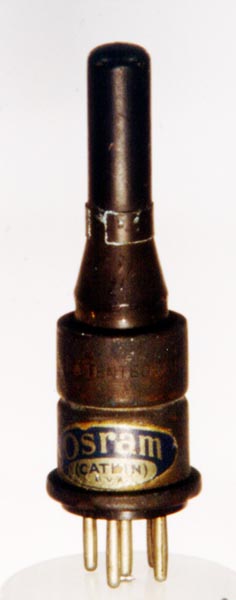

This MH4 has the suffix /K, to denote the Catkin assembly as opposed to the conventional glass envelope type. As can be seen from the picture, this is a strange valve. The Catkin process was introduced in 1933 by M-OV, the valves were very successful but the cost of manufacture lead this production method to be short lived. The Cooled Anode Transmitting (CAT) valves, that the Catkin process was derived from, remained highly successful.
The top envelope is enamelled copper sealed to glass, no internal structure can be seen. The large wide base holds the pinch and a rubber sealing ring. The metal base tube is 25 mm in diameter. The heater rating at 4 Volts and 1 Amp was the UK standard until the American's introduced the 6.3 Volt heater in the mid 1930s.
The thin metal tube envelope is 12 mm in diameter and, excluding the B5 base pins, is 95 mm tall.
References: Datasheet, 1005, 1043, 3002 & 1040. Type MH4K was first introduced in 1933.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
4.0
1.0
250
-4
5.0
11,100
3.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 26, 2014.
