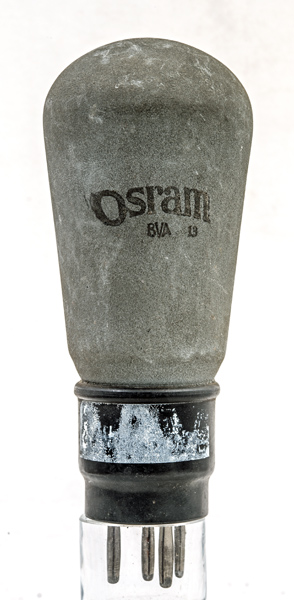

The MH4 is an indirectly heated amplifier triode. The MH4 was also produced in Catkin form in 1933/4. The glass envelope version has a totally different electrode construction but gave the same results. The Catkins were excellent valves but were more expensive to make and were phased out after a few years.![](../pics/aai0671a.jpg)

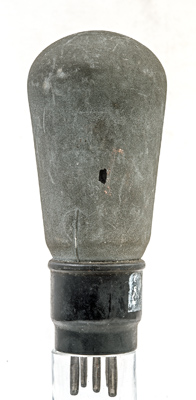

The reverse is plain screening paint.![](../pics/aai0671b.jpg)

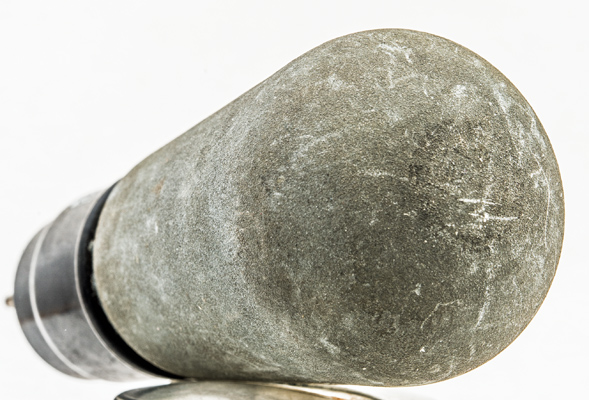

The dome carries the identification but is almost illegible. The balloon envelope is 50 mm in diameter and, excluding the B5 base pins, is 114 mm tall.References: Data-sheet, 1005, 1043, 3002 & 1040. Type MH4 was first introduced in 1929. See also 1929 adverts. |
