DAC32

Sensibly equivalent to:
1H5 1H5GT CV1820 HD14

Extras ▼



The DAC32 is a dry battery diode triode that was designed for AM broadcast radio reception. Mullard describe this valve as a medium gain triode for use as an AF voltage amplifier combined with a single diode for signal or AVC (AGC) rectification.
The filament power is very low and consequently the valve is rated for a very low current.

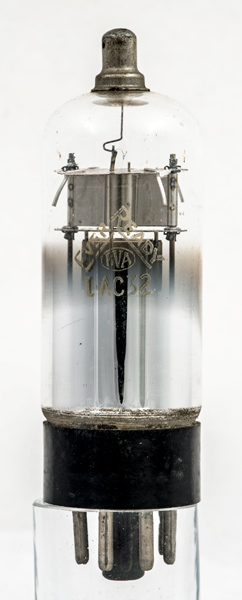

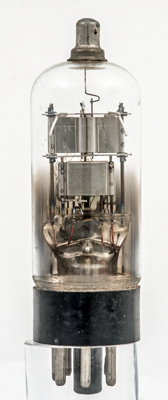

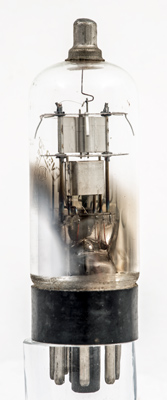

The wide glass tube envelope is 29 mm in diameter and excluding the IO base pins it is 83 mm tall.
References: Datasheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
f+
a
-
a(d)
-
f-
-
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
ra
gm
1.4
0.05
90
0.15
240k
0.275
Thanks to Frank Philipse for supplying the above PDF datasheet.
