6B4G

Sensibly equivalent to:
CV851

Extras ▼

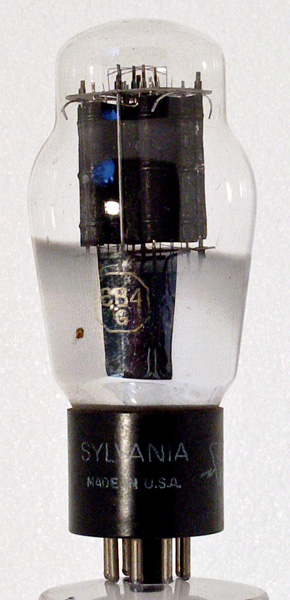

The 6B4G is an unusual valve in that the envelope holds two triode valves that are hard wired in parallel. This was the American answer to the PX4 and the parallel construction enabled the AC anode resistance to be the low figure of 800 Ohms. The device is rated at 3.2 Watts.
The 6B4 is a type 6A3 on an octal base.
The filament is coated ribbon formed into an inverted 'w' in both anode cavities. The grid is a wire zig zag held on notched rods. The anode is formed of two pressed plates fixed together each with two half cavities. The anode cavities are 20 mm x 4 mm x 30 mm high.
The classic envelope is 48 mm in diameter and, excluding the IO base pins, is 111 mm tall.
References: Datasheet & 4040. Type 6B4G was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
f+
a
-
g1
-
f-
-



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
Pout
6.3
1.0
250
-45
60
800
5.25
3.2W D_5%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December17, 2012.
