35Z4GT

Sensibly equivalent to:
CV2500 U76

Extras ▼

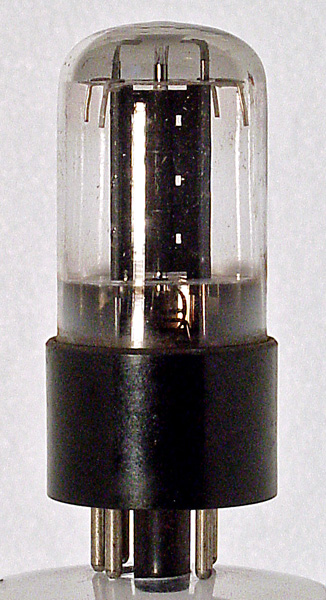

The 35Z4GT is a half wave rectifier and was designed for television use. It would feed a 40 µF reservoir capacitor through an effective series resistance of 100 Ohms. The anode is only 13 mm wide showing the miniaturisation that was becoming possible.
The wide glass tube envelope is 27 mm in diameter and, excluding the IO base pins, is 65 mm tall.
References: Data-sheet & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
ic
h
nc
nc
a
nc
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
35
0.15
250
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2022.
