U76

Sensibly equivalent to:
35Z4GT U74
See also:
Osram KT2, KT63, KT61, KT66, PX4, U50, KT76, KT33C, KT71, U76 & U31 Advert

Extras ▼



The U76 is a half wave rectifier and was designed for television use. It would feed a 40 µF reservoir capacitor through an effective series resistance of 100 Ohms.
Thanks to Stef Niewiadomski for the data-sheet and additional information on the actual heater rating.

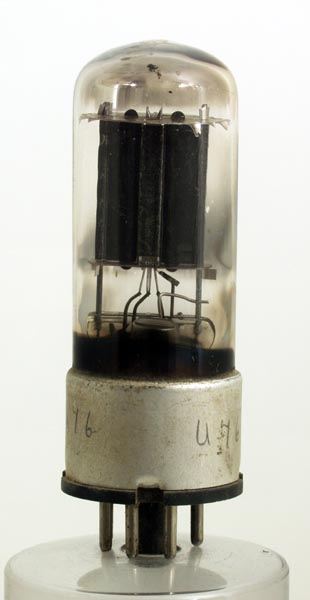

The wide glass tube envelope is 27 mm in diameter and excluding the IO base pins and spigot the height is 80 mm.
References: Data-sheet & 1040. Type U76 was first introduced in 1946. See also 1946 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
ic
h
nc
nc
a
nc
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
30
0.16
250
100
PDF scanned from an original document held by the museum
