VT-214

Sensibly equivalent to:
12H6
See also:
Metal Striptease - The 6H6 Diode Family

Extras ▼

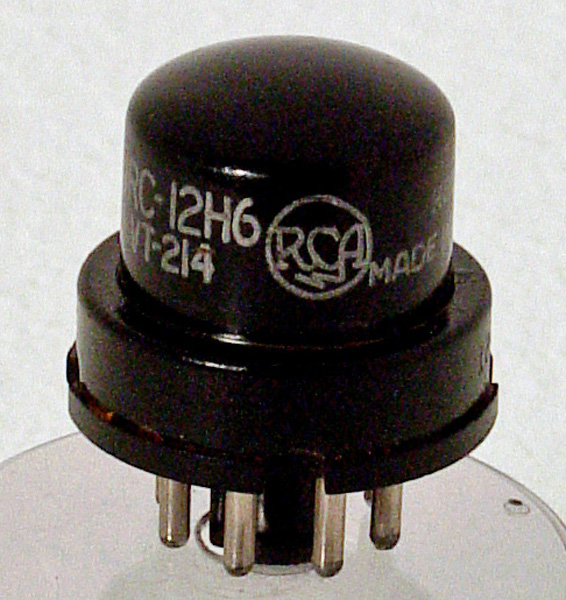

The VT-214 (commercially the 12H6) envelope contains two separate signal diodes.
The 6H6 is electrically identical, they differ in heater Volts only. These double diodes were provided for a range of applications from signal and AGC detection to low power rectification, clamp diodes etc.
An American television textbook of 1950 uses these valves extensively as level clamping diodes.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 28 mm tall.
References: Data-sheet & 1040. Type VT-214 was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
nc
h
k(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
12.6
0.10
117
8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 06, 2022.
