6SH7

Sensibly equivalent to:
CV594
See also:
Metal Striptease

Extras ▼



The 6SH7 type was designed for wideband RF and IF amplification and has a relatively high gm value to ensure a good gain-bandwidth product.
Both 6SH7 and 6SG7 have dual cathode lead-outs to minimise the risk of self-oscillation due to parasitic coupling between input and output circuits caused by common impedance in series with the cathode. The two types are essentially similar except for grid pitch. Type 6SH7 is a 'straight' pentode while Type 6SG7 has a variable-pitch grid, giving it a vari-μ characteristic, and would be suitable for the IF strip of radar receivers incorporating 'swept gain'.

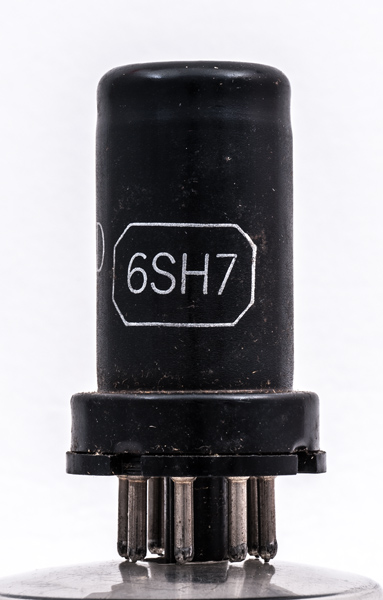

Madein USA by Ken-Rad.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 51 mm tall.
References: Datasheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
k
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-1.5
10.8
4.1
0.9M
4.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
