CV2179

Sensibly equivalent^¶ to:

A2134 CV4062 E2134

See also:

Series Stabiliser Valves Advert

Extras ▼

GEC G8LSD Valve Collection Other CV2179 exhibits

CV2179 is the UK Government procurement designation for the commercial A2134 pentode. The literature shows that it is designated as an audio power valve. In class AB1 a pair of valves in push pull will deliver 13.3 Watts. The input needs 30 Volts peak to peak and the anode load has to 7500 Ohms.

In class A triode application the valve will generate 2.6W at 1.4% distortion.

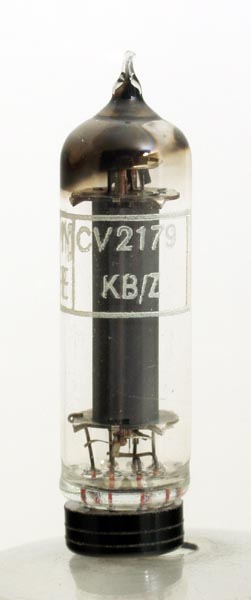

The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins the length is 62 mm.

References: Data-sheet & ¹⁰⁴⁰. Type CV2179 was first introduced in 1955. See also 1955 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	a	k	g2

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	mAa	mAs	Pout	D
	6.3	0.635	250	165	40	12	2.3W	4.5%

PDF scanned from an original document held by the museum

Updated March 04, 2020.
