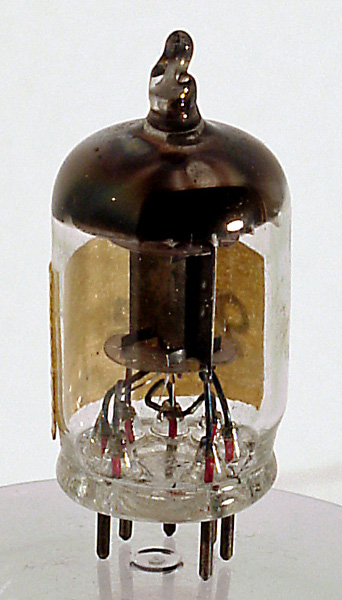

The 9002 is a UHF receiving triode for use as a Class A amplifier. The electrode assembly is very small, of the same scale as an acorn valve. Indeed I believe that the 9002 is a repackaged 955 acorn valve.
B7G valves were make in the USA in the early 1940's but not made in the UK until 1947 or so.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 35 mm tall.
Reference: Data-sheet. Type 9002 was first introduced in 1943. See also 1943 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
h
h
a
g1
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.15
250
-7
6.3
11.4k
2.2
25
Thanks to Frank Philipse for supplying the above PDF datasheet.
