CV1501

Sensibly equivalent to:
E1192 TT11 VT501

Extras ▼

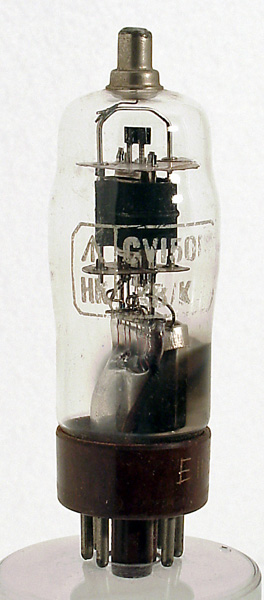

The CV1501 is a small low power VHF transmitting beam tetrode used in WWII.
The anode is of blackened for improved dissipation by radiation and oval in shape. The cathode and grids are flattened. Surrounding the grids and spaced away from the anode is a bright metal box cage with open sides. This is the beam forming plate assembly.
The classic envelope is 30 mm in diameter and, excluding the IO base pins, is 86 mm tall.
References: Datasheet & 3002.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
g3
g1
g2
-
h
k
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.8
250
160
-50
30
8
0.12
2.7W
4.8W
100MHz
200MHz
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 09, 2013.
