TT11

Sensibly equivalent to:
CV1501 E1192 VT501
See also:
Olympia Show 1947

Extras ▼



The TT11 is a small low power VHF transmitting beam tetrode used in WWII.

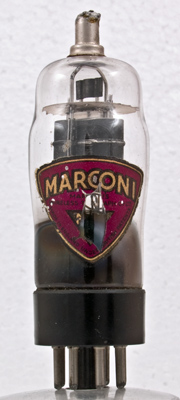

The Marconi paper label.

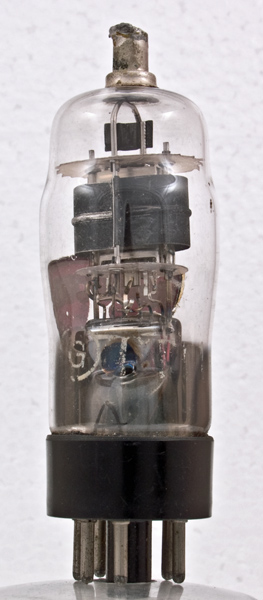

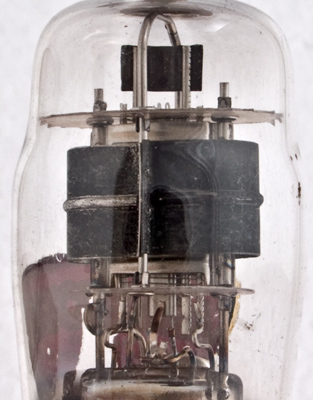

The anode is of blackened for improved dissipation by radiation and oval in shape. The cathode and grids are flattened. Surrounding the grids and spaced away from the anode is a bright metal box cage with open sides. This is the beam forming plate assembly.
The classic envelope is 32 mm in diameter and, excluding the IO base pins, is 87 mm tall.
References: 3002. Type TT11 was first introduced in 1947. See also 1947 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
nc
h
g3
g1
g2
nc
h
k
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.8
250
160
-50
30
8
0.12
2.7W
4.8W
100MHz
200MHz
Updated January 04, 2022.
