VR66

Sensibly equivalent to:
CV1066 P61
See also:
CV1066 short entry

Extras ▼

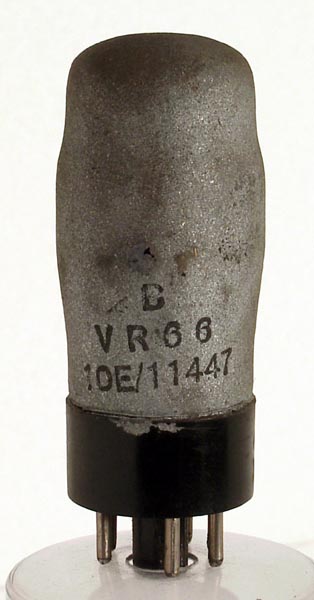

The VR66 (commercial type P61) is a mains amplifier triode. It is of low impedance and was designed for use as an oscillator.
Mazda state that the P61 was primarily designed as an oscillator for television receivers working with an SP61 as the mixer.
The classic envelope is 31 mm in diameter and, excluding the MO base pins, is 71 mm tall.
References: Datasheet & 1040. Type VR66 was first introduced in 1941.



Pin Connections
MO
1
2
3
4
5
6
7
8
h
k
a
-
g1
m
-
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.6
250
-11.8
16
3,700
4.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 03, 2015.
