14S7

Sensibly equivalent to:
CV3936

Extras ▼

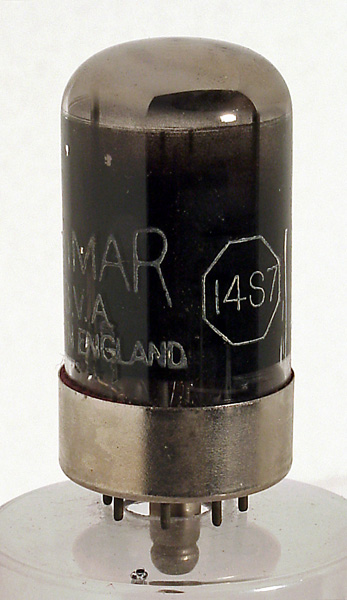

The 14S7 is a triode heptode frequency changer. The American valves with designations starting with 14 were designed for operation on nominal 12 Volt vehicle supplies. Brimar do not give the operating frequency in their short form catalogue. The 7S7 has identical operating characteristics but with a standard 6.3 Volt heater.
The wide glass tube envelope is 28 mm in diameter and, excluding the B8B base pins, is 54 mm tall.
References: Datasheet & 1040. Type 14S7 was first introduced in 1948.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
a(t)
g1(t),g3
g2,g4
g1
k,s
h



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
gm
12.6
0.15
250
100
-2
1.8
0.53



Absolute Maximum Operating Conditions
Triode
Va
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 31, 2013.
