20A2

Sensibly equivalent to:
2050 4G/281D CV1848 WT-210-0004 WT-246 XB7674

Extras ▼

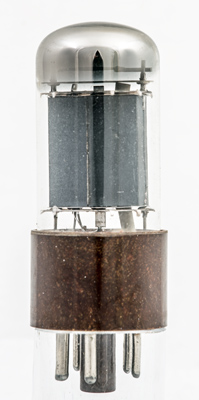

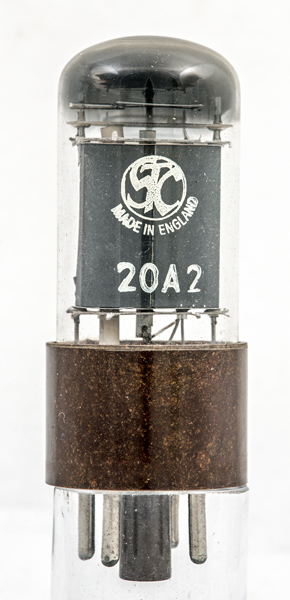

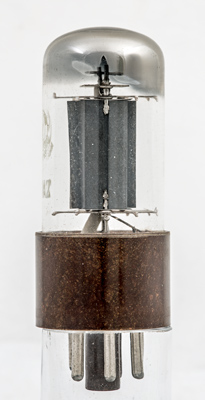

This tetrode thyratron is built on a glass disc base. The base is dished and the supports for the electrodes pass through beads of glass. The wires are then connected to the octal base pins. Close visual inspection suggests that the wires that pass through the base do not directly mate up with the base pins.
The control ratio is high at 350 and the voltage drop across the tube when conducting is 9 Volts.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 70 mm tall.
Reference: Data-sheet. Type 20A2 was first introduced in 1957. See also 1957 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
h
a
nc
g1
g2
h
k



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
mAa
6.3
1.0
600
1,250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2022.
