6R7G

Sensibly equivalent to:
CV1962 DL63

Extras ▼

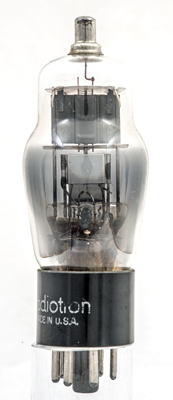

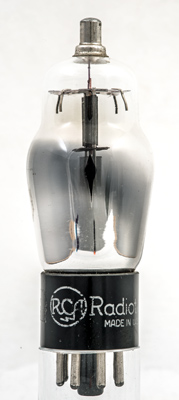

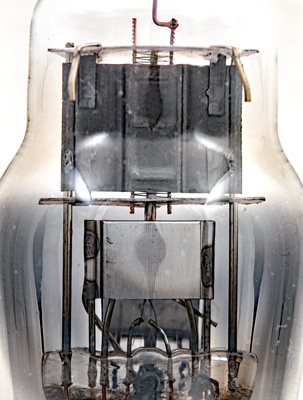

The 6R7G double diode triode was designed for radio receiver use. In the classic superhet broadcast receiver such a valve would provide signal and AGC rectification, followed by the first audio amplification.
The 6SR7 has the same rating but is in a single ended metal envelope.
The classic envelope is 36 mm in diameter, and excluding the IO base pins, is 94 mm tall.
References: Datasheet, 1040 & 1043. Type 6R7G was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
a(d2)
a(d1)
-
h
k
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-9
9.5
8,500
1.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
