6SN7WGT

Sensibly equivalent to:
CV3627

Extras ▼



The 6SN7W is an American glass tubular version of the mid 1930s metal double triode valve. The data-sheet makes it clear that this a premium quality version of the 6SN7GT designed for use where shock and vibration are a factor such as in airborne military equipment. The design probably dates from the mid to late 1940's but the glass foot construction is later.
The construction uses a glass disc base and no pinch. This would assist in making a rugged version.

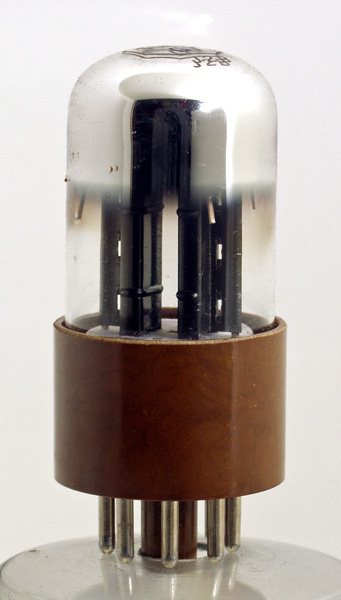

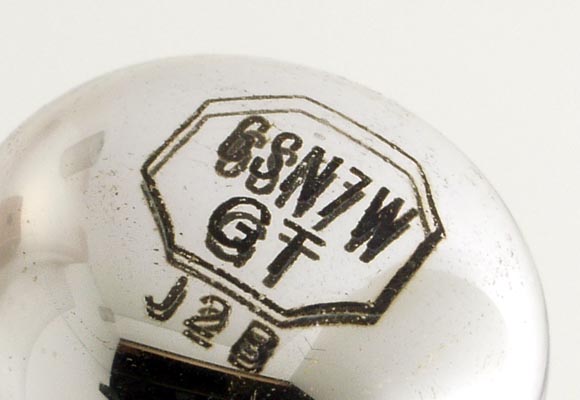

The wide glass tube envelope is 28 mm in diameter and excluding the IO base pin length, stands 69 mm high.
Reference: Data-sheet. Type 6SN7WGT was first introduced in 1956.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(2)
a(2)
k(2)
g1(1)
a(1)
k(1)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.8
250
-0
3
7.7k
1.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 21, 2014.
shape:wide.glass.tube construction:glass.foot type:double.triode age:1940.1950 base:io heater:6.3v pins:8 pin:1.g1 pin:2.a pin:3.k pin:4.g1 pin:5.a pin:6.k pin:7.h pin:8.h
