CV1345

Sensibly equivalent to:
ARTP2 CV3735 TP25 TP26

Extras ▼

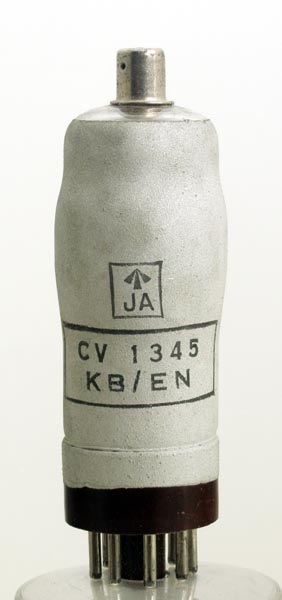

The CV1345 is a triode pentode frequency changer for battery operated receivers. The prototype was the TP25.
The KB/EN identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the EN identifies the maker as Thorn-AEI, Sunderland.
The classic envelope is 32 mm in diameter, and excluding the MO base pins, is 87 mm tall.
References: Data-sheet, 1040 & 1043. Type CV1345 was first introduced in 1938. See also 1938 adverts.



Pin Connections
MO
1
2
3
4
5
6
7
8
tc
f-
nc
a
a(t)
g1(t),g3
m
g2
f+
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.2
120
60
-1.5
0.58
0.92
1.3M
0.26



Absolute Maximum Operating Conditions
Triode
Va
mAa
80
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
