CV176

Sensibly equivalent to:
CV1721 XP1.5V

Extras ▼

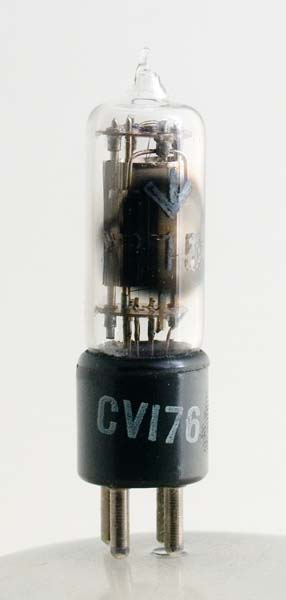

The CV176 from Hivac is an audio output triode designed originally for hearing aid use. The low CV number suggests that the valve was in service at or about 1941 but we know that it was not released in the 1930s. The output load impedance is given as 8,000 Ohms and the output power as 0.0067 Watts. Or 6.7 mW. Battery drain was a vital consideration and hence the low output power but very low filament consumption. The 1.5 Volt requirement being so that dry cells could be used.
The thin glass tube envelope is 15 mm in diameter with the Bakelite base being 16 mm diameter, and excluding the Sm4 base pins, is 52 mm tall.
Referencs: 1049.



Pin Connections
Sm4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
1.5
0.08
50
-4.5
1.75
7250
0.72
