6AG7

Sensibly equivalent to:
CV1882
See also:
Metal Striptease - CV366 short entry

Extras ▼



The 6AG7 was designed for single ended audio output stages. Most likely use being for radio receivers.

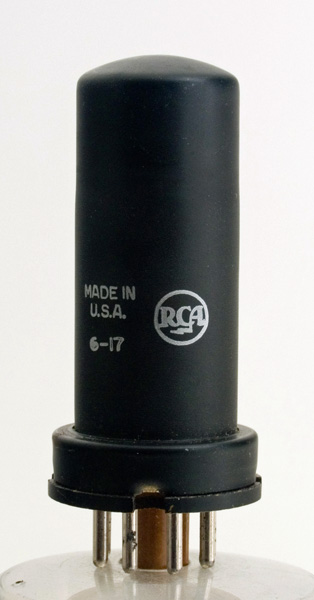

The make and origin are printed on the back of the envelope.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 68 mm tall.
References: Datasheet, 3002, 1043 & 1040. Type 6AG7 was first introduced in 1939.



Pin Connections
IO
1
2
3
4
5
6
7
8
g3
h
m
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.65
300
150
-3
30
7
130K
11
3W
7%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 05, 2015.
