MH4K

Sensibly equivalent^¶ to:

41MTL AC/HL AR17 CV399 CV1037 D4 HL4 MH4 NR31 VR37

See also:

Catkin Valves - The Metal Valve - Osram Catkin Advert

Extras ▼

M-OV G8LSD Valve Collection Other MH4K exhibits

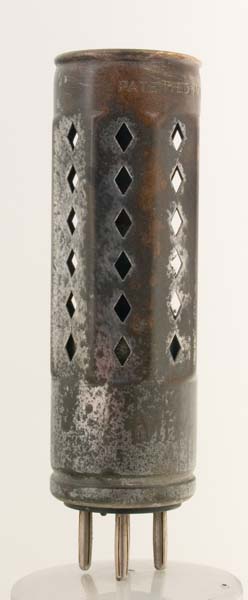

The MH4 or MH4K catkin featured here has an external metal shield. Other MH4's in the collection are without this screening feature. The MH4 was designated as being for detector service in radio receivers. Catkin versions were introduced in 1933 and 1934.

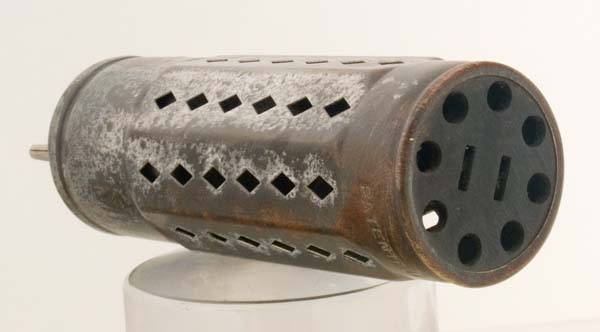

The shroud is plated to give a bright appearance, long since faded in this exhibit. The top is enclosed by what looks to be a pierced paxolin disk.

The outer metal shroud is 32 mm in diameter, and excluding the B5 base pins is 97 mm tall.

References: Data-sheet, ¹⁰⁰⁵, ¹⁰⁴³, ³⁰⁰² & ¹⁰⁴⁰. Type MH4K was first introduced in 1933. See also 1933 adverts.

Pin Connections

B5	1	2	3	4	5
	a	g1	h	h	k

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm
	4.0	1.0	250	-4	5.0	11,100	3.6

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated October 20, 2013.
