Z759

Sensibly equivalent to:
CV5060
See also:
Wideband Valves Advert

Extras ▼



The Z759 is an RF pentode with a high mutual conductance designed for video or other wideband RF amplification.

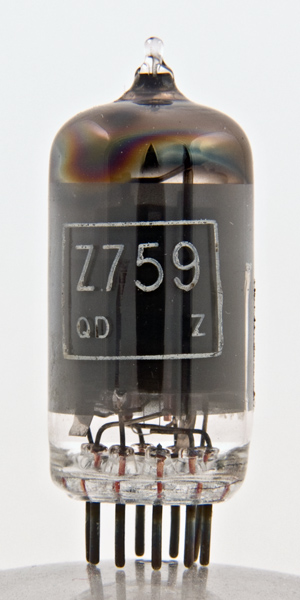

The envelope is opaque all round. The GEC logo denotes a professional device.
The thin glass tube envelope is 21 mm in diameter, and excluding the B9A base pins is 47 mm tall.
References: Data-sheet & 3002. Type Z759 was first introduced in 1955. See also 1955 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
k
nc
h
h
a
g2
g3,s



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
6.3
0.6
250
250
-2
20.0
5.5
0.5M
15.0
5W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2022.
